Tooth Plate

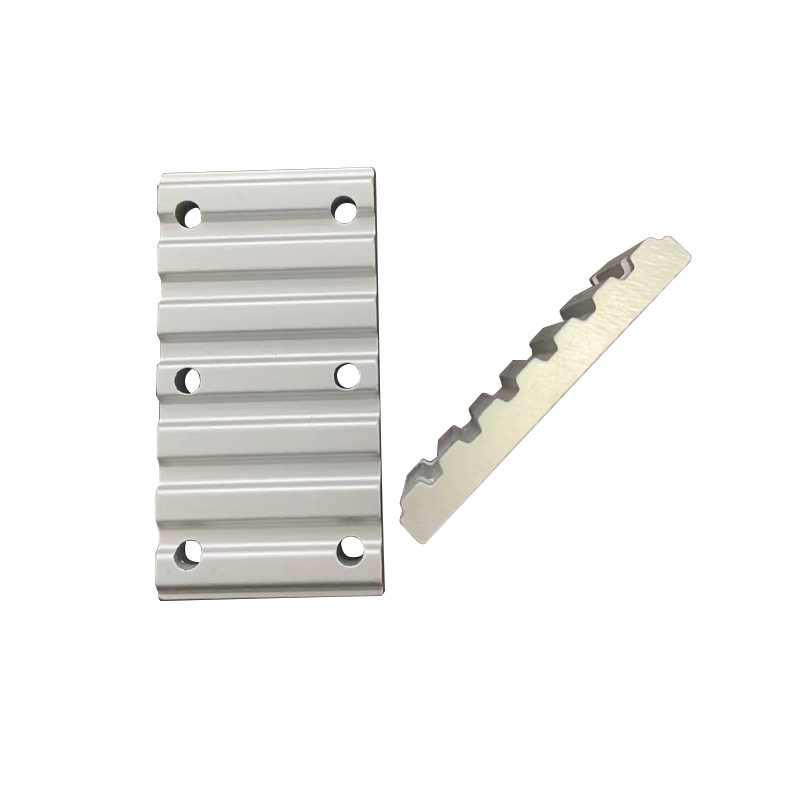

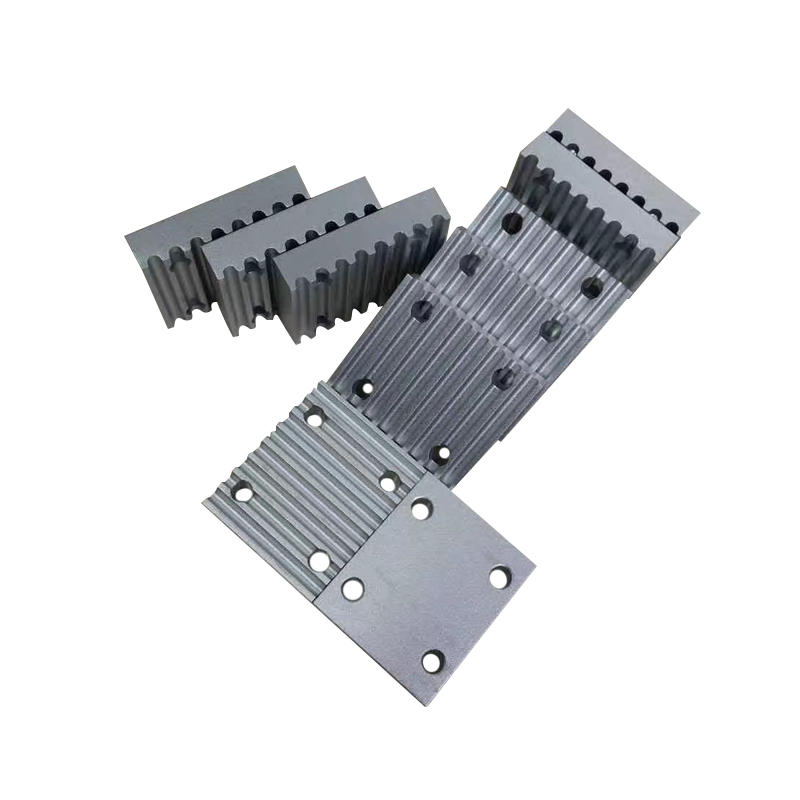

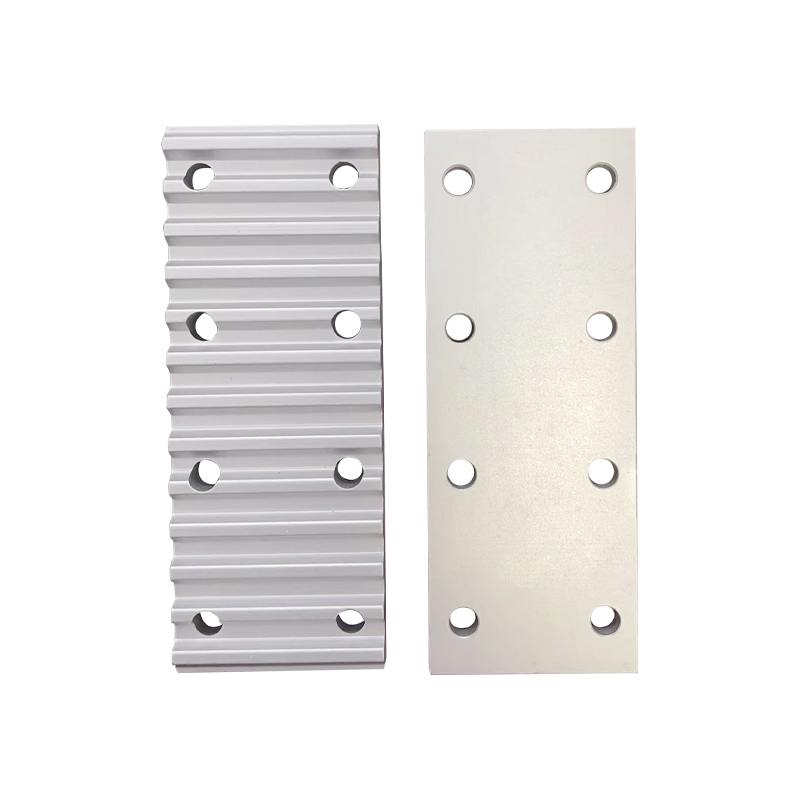

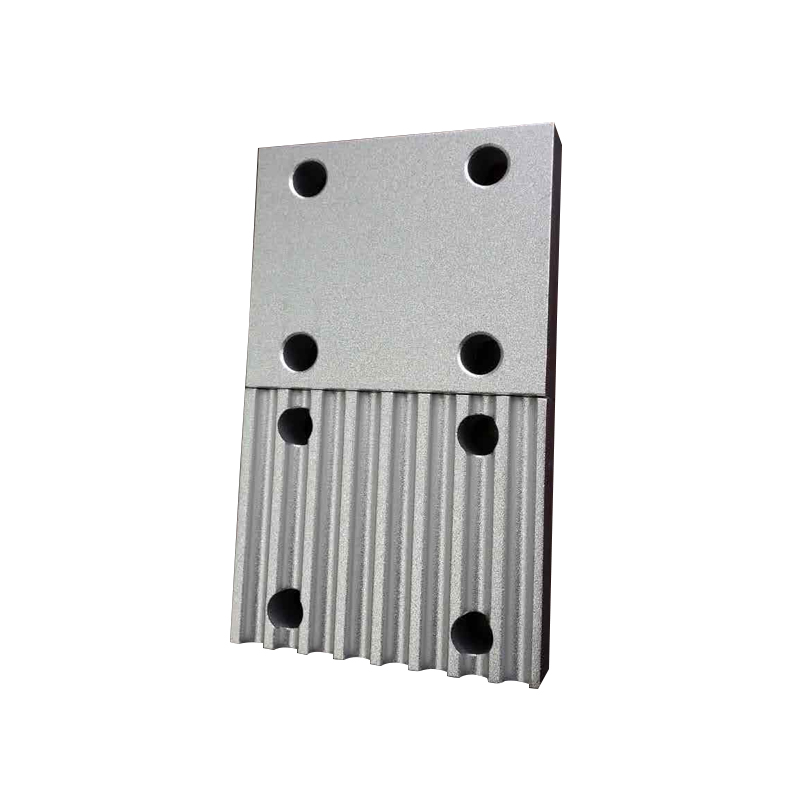

Timing belt clamping plate/fixing clip is the key component for timing belt fastening and tensioning. They are also called synchronous belt clamping plates or fixing clips and are often used in precision transmission systems. They have the characteristics of accurate and stable transmission, wear resistance, fatigue resistance, high temperature resistance, and easy maintenance. They can effectively improve the positioning stability of the synchronous belt, prevent slipping or loosening, and ensure long-term efficient transmission. They have a simple structure and are easy to install and maintain. They are widely used in automation equipment, packaging machinery, electronic instruments, CNC machine tools and other fields. They are suitable for various precision linear transmission scenarios and provide reliable fixing and tensioning solutions.

PREV：No next articleNEXT：No previous article
  • Specification
  • describe
  • contact us

  •

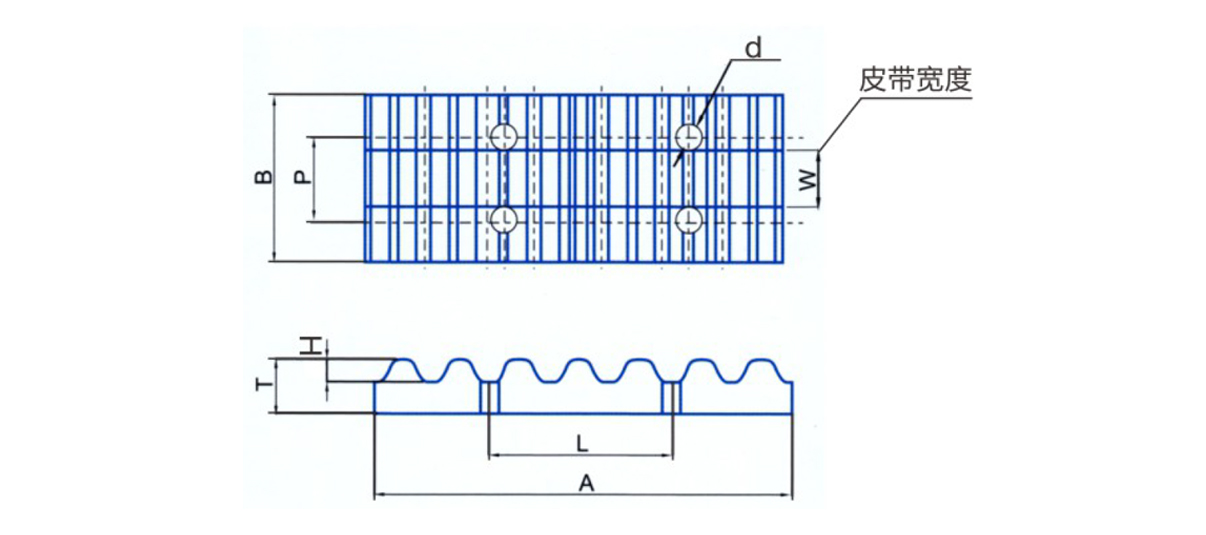

    Specifications and processing length of toothed plates



    Model Nominal belt width W A B T H L P d model Nominal belt width W A B T H L P d
    MXL 025 6.4 26 18 4   10 11 3.4 3M,S3M
    P3M    		 060 6 twenty one 20 4 1.14 15 11 3.4
    037 9.5 twenty two 0.51 14 010 10 25 15
    050 12.7 26   18 150 15 30 20
    XL 025 6.4 36 twenty four 6 1.25 25 12 4.5 5M,S5M
    P5M    		 100 10 35 26 6 1.81 25 16 4.5
    031 7.9 25 14 150 15 32 twenty one
    037 9.5 26 16 250 25 42 31
    050 12.7 30 20 8M,S8M
    P8M    		 150 15 56 34 8 2.85 40 twenty two 5.5
    L 050 12.7 66 32 8 1.9 50 20 5.5 250 25 44 32
    075 19.1 38 26 300 30 50 37
    100 25.4 46 33 400 40 60 47
    150 38.1 58 46 T5,AT5 100 10 35 26 6 1.2 25 16 4.5
    H 075 19.1 89 38 10 2.3 70 26 5.5 150 15 32 twenty one
    100 25.4 46 33 200 20 38 26
    150 38.1 58 45 250 25 43 31
    200 50.8 70 58 T10.AT10 150 15 70 34 8 2.5 50 twenty two 5.5
    S2M,P2M 040 4 26 16 4   10 18 3.4 200 20 40 27
    060 6 18 0.76 10 250 25 44 32
    010 10 twenty four   15 300 30 50 37



    The toothed plate is used to connect the two ends of the open synchronous belt and fix it to the machine to achieve the transmission purpose.

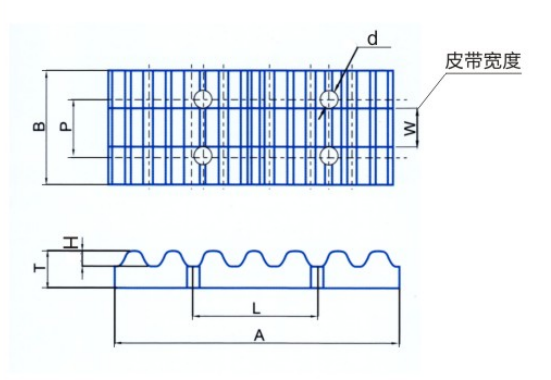

    Type Normal width
    of the belt    		 W A B T H L P d
    MXL 25 6.4 26 18 4 10 11 3.4
    37 9.5 22 0.51 14
    50 12.7 26 18
    XL 25 6.4 36 24 6 1.25 25 12 4.5
    31 7.9 25 14
    37 9.5 26 16
    50 12.7 30 20
    L 50 12.7 66 32 8 1.9 50 20 5.5
    75 19.1 38 26
    100 25.4 46 33
    150 38.1 58 46
    H 75 19.1 89 38 10 2.3 70 26 5.5
    100 25.4 46 33
    150 38.1 58 45
    200 50.8 70 58
    S2M,P2M 40 4 26 16 4 10 18 3.4
    60 6 18 0.76 10
    10 10 24 15
    3M, S3M P3M 60 6 21 20 4 1.14 15 11 3.4
    10 10 25 15
    150 15 30 20
    5M, S5M P5M 100 10 35 26 6 1.81 25 16 4.5
    150 15 32 21
    250 25 42 31
    8M, S8M P8M 150 15 56 34 8 2.85 40 22 5.5
    250 25 44 32
    300 30 50 37
    400 40 60 47
    T5, AT5 100 10 35 26 6 1.2 25 16 4.5
    150 15 32 21
    200 20 38 26
    250 25 43 31
    T10,AT10 150 15 70 34 8 2.5 50 22 55
    200 20 40 27
    250 25 44 32
    300 30 50 37










Recommended Products
ABOUT US
As China Timing Belt Tooth Plate Manufacturers and Tooth Plate Suppliers, Ningbo Slongwang Synchronous Belt Co,.Ltd. specializes in the production of "Slongwang" brand synchronous belts and pulleys that meet international standard tooth profiles, as well as poly-V belts and pulleys, and other belt transmission products. Our product range includes rubber circular synchronous belts, rubber open-end synchronous belts, polyurethane PU circular synchronous belts, polyurethane PU open-end synchronous belts, polyurethane PU spliced synchronous belts, double-sided tooth synchronous belts, arc tooth synchronous belts, trapezoidal tooth synchronous belts, flat belts, V-belts, tooth bars, tooth plates, tensioners, and matching pulley wheels. With over 30 models and more than 3,000 specifications available, we are comprehensive manufacturers of synchronous belt products in China.
Located by the affluent and beautiful Hangzhou Bay, our company enjoys a scenic location with mountains and water, and a talented workforce. The old factory is situated along the 329 National Road in Longshan Town, while the new factory is conveniently located in the Longshan Industrial Park by the sea. In the past twenty years, through the hard work and innovation of our dedicated employees, we have established strong cooperative relationships with nearly a thousand clients in China and are expanding into international markets. Our company is equipped with advanced machinery, standardized manufacturing processes, comprehensive testing equipment, and strict enterprise management. Our technical management team, which includes some of the earliest developers of synchronous belt transmission products in China, boasts a wealth of professional experience. We have obtained ISO 9001:2000 certification, ensuring the quality of our products, which are widely used and recognized by clients in various industries both domestically and internationally, earning a good reputation for the "Slongwang" brand.
Our products are extensively used in various industries, including machine tools, textiles, printing, food packaging, home appliances, engraving, wire and cable, instruments, petrochemicals, tobacco, and communications, for the transmission of new mechanical drives.
Adhering to the traditional virtues of "sincerity, honesty, and earnestness," Slongwang advocates for high-quality and affordable products to achieve a win-win situation. We strive to lead the market with reliable products, more favorable prices, and faster delivery times, aiming to attract a broader range of partners. With a vision to establish a strong and large enterprise that stands the test of time, we are committed to creating a century-old business. We are eager to work with visionaries worldwide to forge a brilliant future.
Synchronous pulley consists of a circular belt with evenly spaced teeth on its inner circumference and a correspondingly engaging pulley. It combines the advantages of belt drives, chain drives, and gear drives. During transmission, power is transferred through the meshing of the belt teeth with the pulley's tooth grooves.
Synchronous pulley offers precise transmission ratios, no slippage, and constant speed ratios, ensuring smooth operation, vibration absorption, low noise, a wide range of transmission ratios (up to 1:10), and allowable linear speeds of up to 50 m/s. It can transmit power from a few watts to hundreds of kilowatts. With high transmission efficiency, generally reaching 98%, it is compact, suitable for multi-shaft transmission, and requires no lubrication, making it pollution-free and ideal for environments where contamination is not allowed or where working conditions are harsh.
Certificate
News
Synchronous Belt Tooth Plate Industry knowledge

Timing belt toothed plate: efficient and stable mechanical transmission solution

The timing belt tooth plate is one of the indispensable key components in the precision transmission system. Its main function is to ensure the stability and efficiency of the timing belt during the transmission process. As part of the transmission system, the tooth plate achieves precise synchronous transmission by matching the tooth shape of the timing belt, thereby ensuring high precision and low wear of the equipment during operation. Ningbo Slongwang Synchronous Belt Co,.Ltd., as a well-known manufacturer of synchronous belt products in China, provides a variety of synchronous belts and related accessories, including high-quality timing belt tooth plates. The wide application of this product covers many fields such as automation equipment, packaging machinery, electronic instruments, and CNC machine tools.
The basic structure and working principle of the timing belt tooth plate determine its impact on stability and efficiency during the transmission process. It is usually made of high-strength materials and can withstand large workloads. The tooth plate cooperates with the timing belt, and the precise transmission of the synchronous belt is ensured by the engagement of the tooth grooves of the belt with the racks of the tooth plate. This design can effectively prevent the belt from slipping when running at high speed, thereby ensuring the reliability of the entire mechanical system.
The design and material selection of the tooth plate are crucial to its performance. Ningbo Slongwang Synchronous Belt Co,.Ltd. uses high-quality wear-resistant materials and advanced manufacturing processes to ensure that the tooth plate has good wear resistance, fatigue resistance and high temperature resistance. These characteristics enable the tooth plate to maintain its transmission accuracy under long-term and high-load operating conditions, reducing the need for maintenance and extending its service life. The high temperature resistance of the timing belt tooth plate is particularly important because in some high-temperature working environments, the tooth plate needs to withstand large temperature changes to avoid material deformation or performance degradation.
The role of the timing belt tooth plate in the precision transmission system is not only to ensure the synchronous transmission of the belt, but also to reduce vibration and noise during the transmission process through its stable tension. In mechanical equipment with high precision requirements, the tooth plate can effectively reduce errors, improve the working stability of the equipment, and ensure that the system can run smoothly and achieve the desired effect in precision machining and automated operations.
Compared with traditional transmission systems, the advantages of timing belt tooth plates are their simple structure and easy installation and maintenance. Unlike chain drive systems, timing belt tooth plate systems do not have complex mechanical connections and lubrication requirements in transmission, reducing maintenance workload. In addition, the timing belt itself has a high transmission efficiency, which can reduce energy loss and improve the overall efficiency of mechanical equipment. For modern automation equipment, especially production lines that need to work continuously for a long time, the efficiency of the timing belt tooth plate is particularly prominent.
In some precision applications, such as CNC machine tools, packaging machinery and automation equipment, the stability and efficiency of the transmission system directly affect the production efficiency and processing accuracy. The precision design and high-quality materials of the timing belt tooth plate ensure the reliability of these equipment under long-term high-load operation. Whether in high-precision machining or in large-scale production lines, the timing belt tooth plate can provide the necessary support to help the equipment run stably and improve production efficiency.
The application range of the timing belt tooth plate is very wide. It is suitable for various transmission occasions requiring high precision, low noise and stability. The timing belt tooth plate provided by Ningbo Slongwang Synchronous Belt Co,.Ltd. can meet the needs of different industries and ensure that the equipment operates in an efficient and stable environment. When selecting the timing belt tooth plate, in addition to considering its material and processing technology, it is also necessary to make a reasonable configuration according to the specific application scenario to maximize its transmission efficiency.

How to enhance the performance of mechanical equipment through timing belt tooth plate

In the transmission system of mechanical equipment, the timing belt tooth plate plays a vital role, especially in the occasions of precision transmission and efficient operation. Ningbo Slongwang Synchronous Belt Co., Ltd. is a company specializing in the production and supply of synchronous belts and supporting products, providing a variety of precision synchronous belts, pulleys and related parts to meet the needs of industrial equipment for efficient, stable and precise transmission. As one of the important components, the timing belt tooth plate has unique advantages in improving the performance of mechanical equipment, improving transmission accuracy, and reducing maintenance costs.
Timing belt tooth plates are usually used in synchronous belt transmission systems, working with synchronous belts to ensure precise engagement between pulleys, thereby effectively transmitting power. Its main function is to accurately transmit motion and power to the target equipment through tooth design, prevent belt slippage, and improve transmission efficiency. Due to its unique structural design, the timing belt tooth plate can not only improve transmission accuracy, but also maintain stable operation under high load.
Ningbo Slongwang's timing belt tooth plates focus on wear resistance, high temperature resistance and high load bearing capacity in design and manufacturing, which enables them to maintain long-term stability under various harsh working conditions. The tooth design and material selection of the timing belt tooth plate can effectively reduce the friction loss between mechanical parts, thereby improving the overall efficiency of the system, and can withstand high-intensity workloads and reduce equipment failures caused by wear or fatigue.
Another major advantage of the timing belt tooth plate is that it can reduce vibration and noise. During the operation of mechanical equipment, excessive vibration and noise not only affect the working environment, but may also accelerate the wear of the equipment. The precise design of the timing belt tooth plate makes the synchronous belt contact with the pulley more uniform during operation, thereby reducing vibration and noise, and improving the stability and service life of the equipment.
The timing belt tooth plate provided by Ningbo Slongwang is also very convenient in installation and maintenance. Due to its simple structure, users can easily adjust and repair the equipment during operation, reducing the downtime of the equipment. Especially in the fields of automation equipment, CNC machine tools, packaging machinery, etc., the timing belt tooth plate can provide a reliable transmission solution to ensure the efficient operation of the equipment and avoid production interruptions caused by transmission failures.
The timing belt tooth plate plays a significant role in improving the performance of mechanical equipment. Through its precise tooth design and high temperature and wear resistant materials, the timing belt tooth plate can effectively improve the transmission accuracy of the equipment, reduce friction loss, extend the service life of the equipment, and reduce maintenance costs. Ningbo Slongwang Synchronous Belt Co., Ltd.'s timing belt tooth plate series products are widely used in various high-precision and high-load mechanical equipment with their excellent performance and reliable quality, meeting the industry's demand for efficient and stable transmission.
