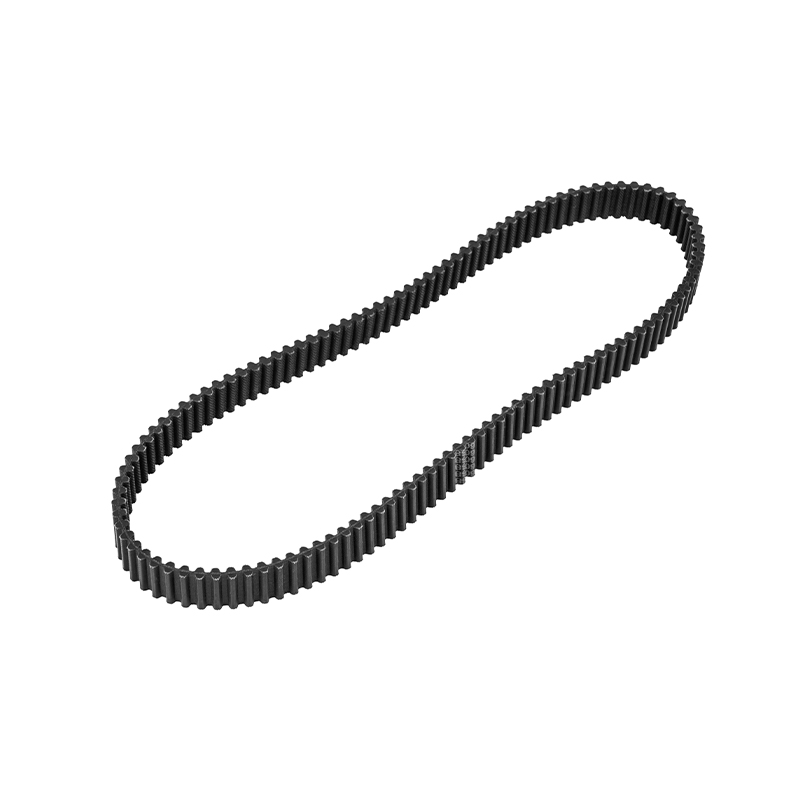

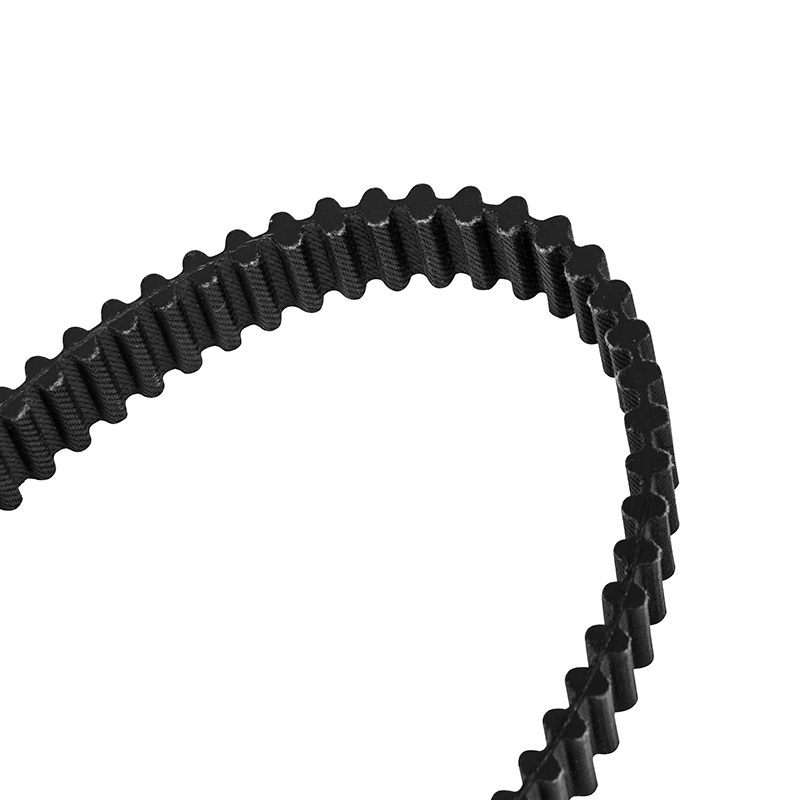

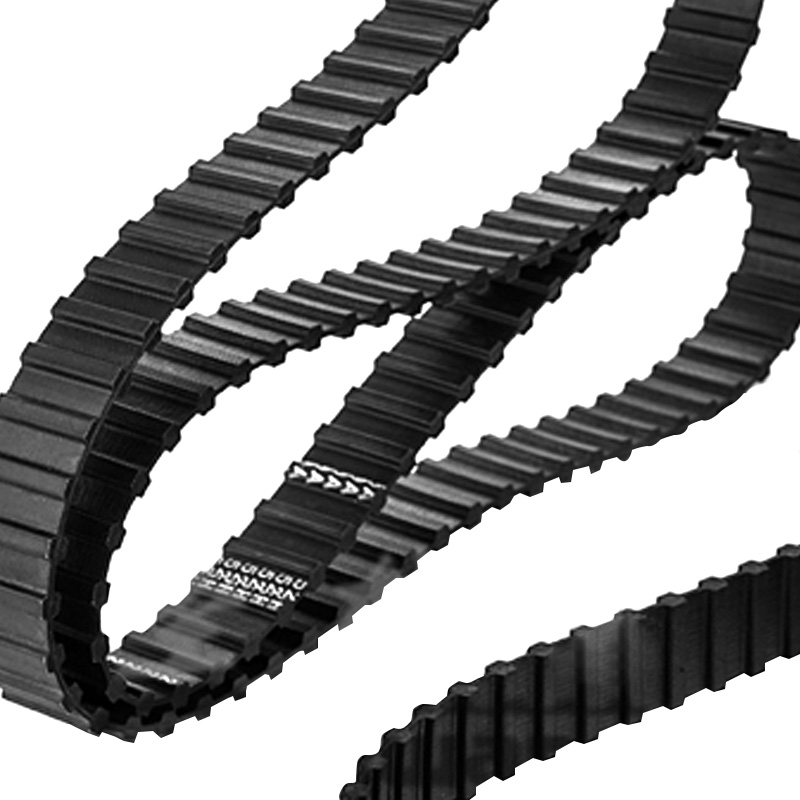

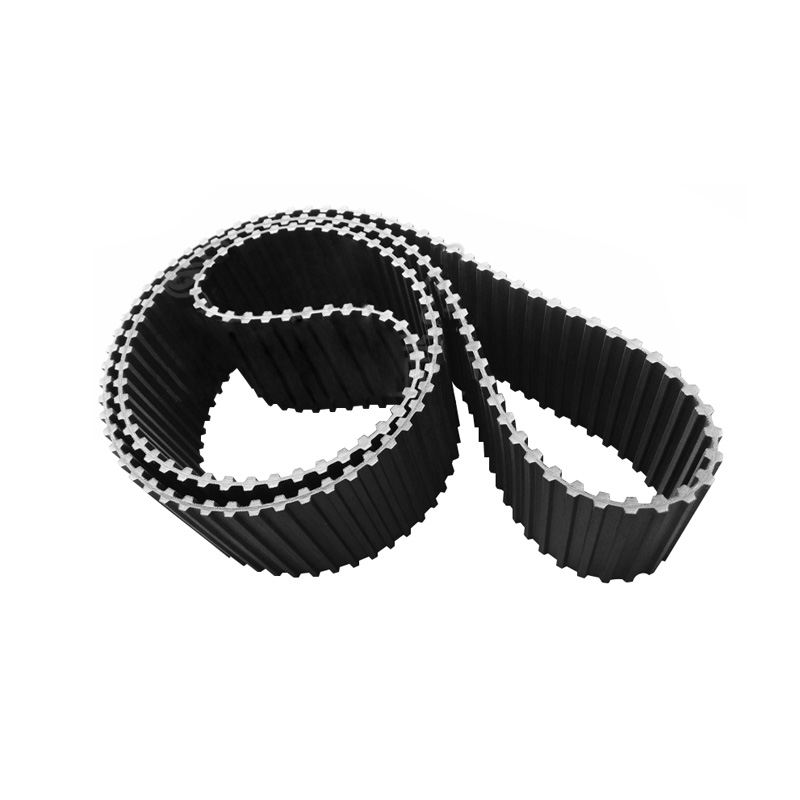

Double-Sided Tooth Synchronous Belt

‌Double-sided toothed synchronous belt is a specially designed transmission belt with double-sided teeth. Compared with the traditional single-sided toothed synchronous belt, it shows significant advantages in performance and application range‌. The design of the double-sided toothed synchronous belt makes it more stable during operation, eliminates wear caused by one-sided load, and improves service life‌

1. The pitch and tooth profile of the double-sided tooth synchronous belt are equal to the tooth profile and pitch of the single-sided synchronous belt.
2. Double-sided toothed synchronous belts can be divided into two standard forms according to the distribution of the teeth:
DA type double-sided toothed synchronous belt, the teeth on both sides are arranged symmetrically
DB type double-sided toothed synchronous belt, the teeth on both sides are arranged in staggered positions

PREV：Rubber Timing Belt Trapezoidal TeethNEXT：Rubber opening belt
  • Specification
  • contact us

  •

    1. The pitch and tooth profile of double-sided toothed synchronous belts are equivalent to the tooth profile and pitch of single-sided synchronous
    belts. 2. Double-sided toothed synchronous belts can be divided into two standard forms according to
    the distribution of belt teeth: DA type double-sided toothed synchronous belts, the belt teeth on both sides are arranged symmetrically, see the figure below
    DB type double-sided toothed synchronous belts, the belt teeth on both sides are arranged in staggered positions, see the figure below



    Model g H Specification code Pitch line length (mm) Number of teeth (mm)
    D~XL 0.508 3.05 158XL~1020XL 401.32~2590.8 79~510
    D~L 0.762 4.58 217L~1148L 552.45~2914.65 58~306
    D~H 1.372 5.95 220H~1900H 558.80~4826.00 44~380
    D~T5 1.000 3.40 T5x550~T5x2000 550.00~2000.00 110~400
    D~T10 2.000 7.00 T10x560~T10x4650 560.00~4650.00 56~465
    DA~3M 0.760 3.10 402-3M~3000~3M 402.00~3000.00 134~1670
    DA~5M 1.143 5.26 550-5M~4260~5M 550.00~4260.00 110~852
    DA~8M 1.372 7.90 552-8M~4520~8M 552.00~4520.00 69~565
    DA~14M 2.800 14.84 1036-14M~4578-14M 1036.00~4578.00 74~327
    DA~S5M 0.410 4.25 550-S5M~2800-S5M 550.00~2800.00 110~560
    YES~S8M 1.372 7.48 560-S8M~4000-S8M 560.00~4000.00 64~500
    DA~S14M 2.800 12.36 1008-S14M~4508-S14M 1008.00~4508.00 72~322
Recommended Products
ABOUT US
As China Double-Sided Tooth Synchronous Belt Manufacturers and Double-Sided Tooth Synchronous Belt Suppliers, Ningbo Slongwang Synchronous Belt Co,.Ltd. specializes in the production of "Slongwang" brand synchronous belts and pulleys that meet international standard tooth profiles, as well as poly-V belts and pulleys, and other belt transmission products. Our product range includes rubber circular synchronous belts, rubber open-end synchronous belts, polyurethane PU circular synchronous belts, polyurethane PU open-end synchronous belts, polyurethane PU spliced synchronous belts, double-sided tooth synchronous belts, arc tooth synchronous belts, trapezoidal tooth synchronous belts, flat belts, V-belts, tooth bars, tooth plates, tensioners, and matching pulley wheels. With over 30 models and more than 3,000 specifications available, we are comprehensive manufacturers of synchronous belt products in China.
Located by the affluent and beautiful Hangzhou Bay, our company enjoys a scenic location with mountains and water, and a talented workforce. The old factory is situated along the 329 National Road in Longshan Town, while the new factory is conveniently located in the Longshan Industrial Park by the sea. In the past twenty years, through the hard work and innovation of our dedicated employees, we have established strong cooperative relationships with nearly a thousand clients in China and are expanding into international markets. Our company is equipped with advanced machinery, standardized manufacturing processes, comprehensive testing equipment, and strict enterprise management. Our technical management team, which includes some of the earliest developers of synchronous belt transmission products in China, boasts a wealth of professional experience. We have obtained ISO 9001:2000 certification, ensuring the quality of our products, which are widely used and recognized by clients in various industries both domestically and internationally, earning a good reputation for the "Slongwang" brand.
Our products are extensively used in various industries, including machine tools, textiles, printing, food packaging, home appliances, engraving, wire and cable, instruments, petrochemicals, tobacco, and communications, for the transmission of new mechanical drives.
Adhering to the traditional virtues of "sincerity, honesty, and earnestness," Slongwang advocates for high-quality and affordable products to achieve a win-win situation. We strive to lead the market with reliable products, more favorable prices, and faster delivery times, aiming to attract a broader range of partners. With a vision to establish a strong and large enterprise that stands the test of time, we are committed to creating a century-old business. We are eager to work with visionaries worldwide to forge a brilliant future.
Synchronous pulley consists of a circular belt with evenly spaced teeth on its inner circumference and a correspondingly engaging pulley. It combines the advantages of belt drives, chain drives, and gear drives. During transmission, power is transferred through the meshing of the belt teeth with the pulley's tooth grooves.
Synchronous pulley offers precise transmission ratios, no slippage, and constant speed ratios, ensuring smooth operation, vibration absorption, low noise, a wide range of transmission ratios (up to 1:10), and allowable linear speeds of up to 50 m/s. It can transmit power from a few watts to hundreds of kilowatts. With high transmission efficiency, generally reaching 98%, it is compact, suitable for multi-shaft transmission, and requires no lubrication, making it pollution-free and ideal for environments where contamination is not allowed or where working conditions are harsh.
Certificate
News
Rubber Timing Belt Industry knowledge

The key role of double-sided toothed synchronous belts in industry

Double-sided toothed synchronous belt is a specially designed transmission belt, which has certain advantages in performance and application compared with traditional single-sided toothed synchronous belt. Double-sided toothed synchronous belt has teeth on both sides, which enables it to achieve bidirectional transmission, improves the stability and durability of operation, and is particularly suitable for application environments that require long-term operation and high loads. Ningbo Slongwang Synchronous Belt Co., Ltd., as a professional manufacturer and supplier of double-sided toothed synchronous belts in China, provides products that meet international standards and are widely used in many fields such as machinery, automation equipment, automobiles and home appliances.
Compared with single-sided toothed synchronous belts, double-sided toothed synchronous belts are innovative in design. Its pitch and tooth shape are the same as those of single-sided synchronous belts, but double-sided toothed synchronous belts are set with teeth on both sides, so that the transmission system can bear loads from two directions at the same time. This design not only avoids the wear problem caused by single-sided load, but also increases the service life of the belt. Especially under high-speed or heavy-load working conditions, double-sided toothed synchronous belts provide higher transmission stability and reduce vibration and wear caused by uneven load.
Ningbo Slongwang Synchronous Belt Co., Ltd. has two main types of double-sided toothed synchronous belt products: DA type and DB type. The teeth on both sides of the DA type double-sided toothed synchronous belt are arranged symmetrically, which is suitable for occasions with high requirements for load uniformity and can provide a relatively stable force distribution during the transmission process. The teeth of the DB type double-sided toothed synchronous belt are staggered. This design provides higher transmission accuracy and is suitable for equipment and systems that require high-precision and high-efficiency transmission. Whether it is DA type or DB type, Slongwang can provide a variety of specifications and customized services according to customer needs to ensure that the product can meet the requirements of different applications.
The application field of double-sided toothed synchronous belt is very wide. In the automated production line, the double-sided toothed synchronous belt can bear the load on both sides at the same time, and the power transmission is more balanced, thereby ensuring the stable operation of the equipment. Especially in high-load or high-speed environments, the advantages of double-sided toothed synchronous belts are particularly prominent, which can effectively reduce the wear problems caused by the use of single-sided toothed synchronous belts. The bidirectional load-bearing capacity of this belt makes it widely used in large-scale production and industrial equipment that requires high-precision control.
In machine tools and automation equipment, double-sided toothed synchronous belts are often used to transmit power to ensure the accuracy and reliability of the equipment. High-precision CNC machine tools and machining centers need to have a stable transmission system to ensure machining accuracy under long-term operation. The double-sided toothed synchronous belt avoids the uneven transmission and tooth skipping caused by the single-sided synchronous belt through the design of the double-sided tooth shape. Therefore, in these high-demand applications, the double-sided toothed synchronous belt performs particularly well.
The automotive industry is also an important application field for double-sided toothed synchronous belts. Modern cars, especially electric cars and high-performance cars, have high requirements for power transmission. Double-sided toothed synchronous belts can provide more uniform load distribution in the power system of the car, ensuring the stability and efficiency of the transmission system. Whether in the engine, air conditioning system or power steering system, double-sided toothed synchronous belts can meet the needs of high load and long-term work.
Some equipment in the home appliance industry, such as washing machines, air conditioners and refrigerators, also often use double-sided toothed synchronous belts. In particular, these equipment have high requirements for the stability and durability of the transmission system when they are running for a long time. Double-sided toothed synchronous belts can maintain good stability under high load conditions to ensure long-term reliable operation of the equipment.
As a professional manufacturer in the field of synchronous belts, Ningbo Slongwang Synchronous Belt Co., Ltd. provides a variety of belt drive products including double-sided toothed synchronous belts with its rich experience and high-quality production technology. The company's products not only meet international standards, but also provide customized services according to the specific needs of customers. The double-sided toothed synchronous belts produced by the company have been widely recognized in the industry for improving transmission accuracy, extending service life and improving system stability. Ningbo Slongwang Synchronous Belt Co., Ltd. also has a complete after-sales service system, providing customers with technical support and product consultation to ensure that various needs of customers during use can be solved in a timely manner. The company is committed to helping customers improve production efficiency, reduce maintenance costs, and enhance the market competitiveness of products through continuous innovation and high-quality products.

Application and advantages of Slongwang double-sided toothed synchronous belt

Double-sided tooth synchronous belt is a unique transmission belt. Compared with traditional single-sided tooth synchronous belt, it has more application advantages and performance improvement, especially in load distribution and belt durability. Its double-sided tooth design enables it to bear loads on both sides at the same time, thus avoiding the uneven wear problem that may occur in single-sided tooth synchronous belt, extending the service life and improving the stability of the transmission system. Double-sided tooth synchronous belts are widely used in many industries that require high load, high stability and high-precision transmission, such as automation equipment, automotive industry, home appliances and high-end mechanical equipment.
Ningbo Slongwang Synchronous Belt Co., Ltd., as a leading manufacturer of double-sided tooth synchronous belts in China, specializes in providing synchronous belt products that meet international standards. The company has a wide range of products. In addition to double-sided tooth synchronous belts, it also includes various types of synchronous belts such as rubber round synchronous belts, polyurethane PU synchronous belts, V-belts, flat belts, and matching pulleys, tensioners and other transmission products. With many years of R&D experience and exquisite manufacturing technology, Slongwang is committed to providing high-quality, customized transmission solutions for various industries to meet the diverse needs of different customers.
The basic design of the double-sided toothed synchronous belt is similar to that of the single-sided synchronous belt, but it has teeth on both sides, so that the synchronous belt can transmit power on both sides. This design not only improves the stability of the transmission, but also avoids the problem of uneven wear caused by single-sided load. During the operation of the double-sided toothed synchronous belt, the teeth on both sides evenly share the load, making the belt wear more evenly and extending the service life of the belt. Especially in high-load or high-speed working environments, double-sided toothed synchronous belts can show better stability and durability.
Double-sided toothed synchronous belts can usually be divided into two main forms: DA type and DB type. The tooth profile of the DA type double-sided toothed synchronous belt is symmetrically arranged, which is suitable for applications with uniform loads. The balanced distribution of the tooth profile on both sides can ensure the balance of force during the transmission process, thereby reducing vibration and noise and ensuring the stable operation of the equipment. The DB type double-sided toothed synchronous belt adopts a staggered tooth profile design, which makes it have higher transmission accuracy and efficiency. DB type synchronous belt is suitable for equipment with high precision requirements, such as CNC machine tools and precision instruments.
The wide application of double-sided tooth synchronous belt is mainly due to its excellent load-bearing capacity and stability. In the automated production line, the double-sided tooth synchronous belt can ensure the smooth transmission of the equipment under long-term and high-load operation. Especially in modern automated equipment, the double-sided tooth synchronous belt plays a vital role. Due to its bidirectional load-bearing characteristics, this synchronous belt is very suitable for use in high-precision and high-load production environments, such as robot automated assembly lines, CNC machine tools, precision machining, etc.
In the automotive industry, double-sided tooth synchronous belts also play an important role. Modern automobile engines, power transmission systems, air conditioning systems and other fields generally use synchronous belts to transmit power. The bidirectional load-bearing characteristics of double-sided tooth synchronous belts can effectively share the load in the automobile engine system and improve the stability and operating efficiency of the system. At the same time, the high stability and durability of double-sided tooth synchronous belts can also reduce the frequency and cost of maintenance and extend the service life of various parts of the car.
In the field of home appliances, double-sided tooth synchronous belts are also widely used. Many home appliances, such as washing machines, air conditioners, refrigerators, etc., require efficient power transmission systems. Double-sided toothed synchronous belts can provide stable transmission performance under heavy load conditions, reduce equipment failures and damage, and ensure long-term stable operation of household appliances. Especially in products such as washing machines and air conditioners, double-sided toothed synchronous belts can not only improve transmission efficiency, but also reduce equipment noise and improve user experience.
In addition, double-sided toothed synchronous belts are also widely used in other occasions that require high-load transmission, such as mining machinery, agricultural equipment, wind power generation, etc. Its high temperature resistance, corrosion resistance, and strong tensile strength enable it to maintain stable performance in extreme working environments and meet the needs of different fields.
Ningbo Slongwang Synchronous Belt Co., Ltd., with its strong technical research and development capabilities and advanced production equipment, can provide customers with high-quality double-sided toothed synchronous belts. The company not only provides standard specifications of synchronous belts, but also provides customized solutions according to customer needs. Whether it is DA type or DB type, Slongwang can provide a variety of different specifications and models of products to meet the needs of different industries and different application scenarios. The company strictly controls every link in the production process to ensure stable and reliable product quality, and provides perfect after-sales service to ensure the customer's experience.
Double-sided toothed synchronous belts are widely used in many industries due to their bidirectional transmission advantages, and have become an indispensable key component in high-load, high-precision, and high-stability transmission systems. Ningbo Slongwang Synchronous Belt Co., Ltd., relying on years of experience and technical advantages, is committed to providing customers with high-performance, high-quality synchronous belt products, helping all walks of life achieve more efficient and stable production goals.
